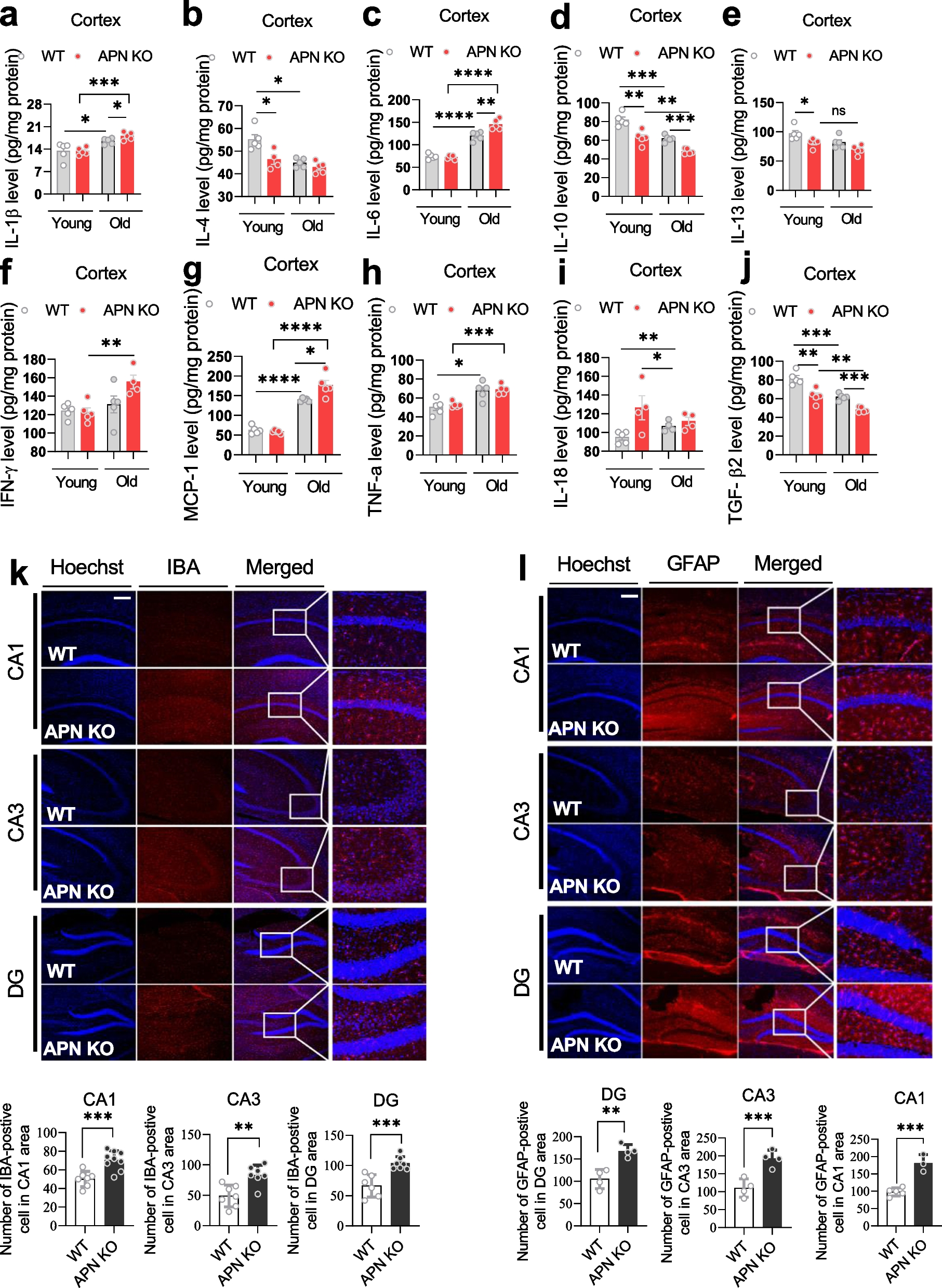

Fig. 3
From: Adiponectin deficiency accelerates brain aging via mitochondria-associated neuroinflammation
APN deficiency correlates with cytokine level and neuroinflammation in the APN KO mice. a-j: Cytokine level change in the cerebral cortex of APN KO mice (n = 4–6). K-I: Immunostaining (original magnification: × 200) and bar graphs show expression changes of IBA-1 and GFAP in the cortex of the experimental subjects (n = 4–6). Data expressed as mean ± SEM, *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001. Scale bar, 100 μm
